1. Product Overview
The Smart Foam Cleaning Machine EFC-325H is designed for equipment hygiene in food processing facilities. It integrates rinsing, foam cleaning and disinfection into one system, helping operators clean production equipment and work areas efficiently.

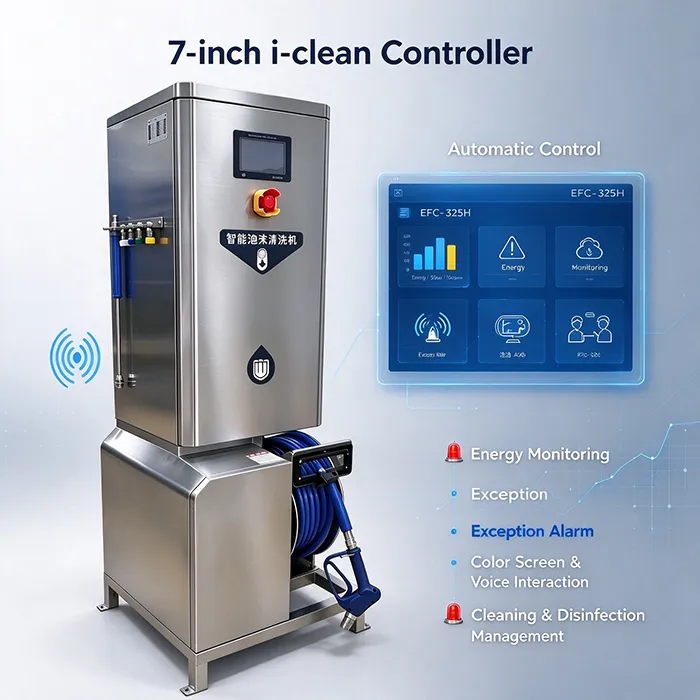

With a built-in i-clean system and touchscreen control, operators can manage cleaning modes, adjust chemical concentrations and monitor consumption. Its compact design also helps save installation space.
2. Key Features
- 4-in-1 Cleaning Functions: Integrates water rinsing, alkaline foam cleaning, acidic foam cleaning and disinfection.
- Manual Mode Selection: A rotary switch allows operators to select the required cleaning mode.
- Touchscreen Data Management: Displays operating data and supports chemical concentration adjustment and cleaning data management.
- Adjustable Chemical Concentration: Allows adjustment of acidic foam, alkaline foam and disinfectant concentrations.
- Consumption Monitoring: Tracks water, chemical and energy consumption.
- Abnormality Alarm: Alerts operators to equipment abnormalities.
- High-Pressure Rinsing: 20-bar output pressure for effective removal of dirt and residues.
- Compact Design: Occupies approximately 0.5 m³ of space.
- Quick Installation: Connect water, compressed air and electricity to get started.
Included Accessories and Components
- 0° Rinsing Nozzle: Concentrated water jet for removing heavy dirt and stubborn residues.
- 15° Rinsing Nozzle: Wider spray angle for cleaning larger surface areas.
- Spray Gun: For manual rinsing and cleaning operations.
- Extension Rod: Extends the cleaning reach for hard-to-access areas.
- Foam Nozzle: For applying cleaning foam to equipment and surfaces.
- Disinfection Nozzle: For applying disinfectant during the disinfection process.
- Acidic Foam and Alkaline Foam Functions: Supports two foam cleaning modes for different cleaning requirements.
- Manual Rotary Switch: For selecting rinsing, acidic foam, alkaline foam and disinfection modes.
- Touchscreen i-clean System: For concentration adjustment, operating data display, consumption monitoring and data management.
3. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | EFC-325H |
| Voltage / Power | 380V / 50Hz · 4000W |
| Water Supply | 3/4″ quick plug · 2–5 bar |
| Water Flow / Pipe | >3 m³/h · 1″ |
| Max. Water Temperature | 60°C |
| Air Inlet | 8 mm air tube |
| Output Pressure | 20 bar |
| Hose Length | 25 m |
| Cleaning Modes | Rinse, Acidic Foam, Alkaline Foam, Disinfection |
| Safety Protection | Overload, Short Circuit, Leakage |
| Protection Rating | IP54 |
| Dimensions | 730 × 615 × 1745 mm |
| Weight | 146 kg |
4. How It Works
The EFC-325H integrates four cleaning modes, selected via a manual rotary switch.
- Rinse: Uses pressurized water to remove dirt and surface residues.
- Alkaline Foam: Applies alkaline cleaning foam to help remove grease, proteins and other organic residues.
- Acidic Foam: Applies acidic cleaning foam to help remove mineral deposits and other suitable residues.
- Disinfection: Applies disinfectant to support the factory’s hygiene procedures.
The touchscreen i-clean system is used to adjust chemical concentrations, display operating data, monitor water, chemical and energy consumption, and manage cleaning data. An abnormality alarm helps alert operators to equipment issues.
5. Applications
The EFC-325H is designed for food processing facilities that require systematic cleaning of production equipment and work areas.
With water rinsing, alkaline foam, acidic foam and disinfection functions, it supports different cleaning procedures for removing organic residues, mineral deposits and other contaminants from suitable surfaces.
Typical applications include:
- Production Equipment: Processing machines, conveyors, worktables and other washable equipment surfaces.
- Floors and Walls: Production areas exposed to food residues, grease and dirt.
- Multi-Stage Cleaning: Facilities that use different cleaning chemicals for different types of contamination.
- Routine Hygiene Programs: Food factories seeking to integrate rinsing, foam cleaning and disinfection into daily cleaning procedures.
The EFC-325H combines multiple cleaning functions in one system, helping simplify cleaning operations and manage chemical usage across food production areas.
6. Installation Requirements
Before installation, ensure the site meets the following requirements:
-
Water supply: Flow rate above 3 m³/h, water pressure of 2–5 bar, and a 1″ supply pipe.
-
Water inlet connection: 3/4″ quick plug.
-
Compressed air: 8 mm air tube with a suitable air supply.
-
Electrical supply: 380V / 50Hz, with a rated power of 4000W.
-
Installation space: Allow sufficient room for the machine, operator access and hose handling. The machine dimensions are 730 × 615 × 1745 mm.
-
Safety: Provide appropriate grounding and electrical protection in accordance with local requirements.
Installation involves connecting the water, compressed air and electrical supplies. Confirm site conditions and connection details before commissioning.
7. Product Comparison
| Feature | EFC-325E | EFC-325H |
|---|---|---|
| Cleaning Modes | Rinse, Foam, Disinfection | Rinse, Alkaline Foam, Acidic Foam, Disinfection |
| Control | i-clean system | Touchscreen i-clean system |
| Chemical Adjustment | Yes | Yes |
| Consumption Monitoring | Water, chemicals | Water, chemicals, energy |
| Output Pressure / Hose | 20 bar / 25 m | 20 bar / 25 m |
EFC-325E: A practical solution for routine rinsing, foam cleaning and disinfection.
EFC-325H: Supports both alkaline and acidic foam cleaning, with touchscreen data management for more flexible cleaning operations.
8. FAQ
Q1: What cleaning modes does the EFC-325H support?
It supports four modes: water rinsing, alkaline foam, acidic foam and disinfection.
Q2: Can I adjust the chemical concentrations?
Yes. The touchscreen i-clean system supports concentration adjustment for cleaning chemicals and disinfectant.
Q3: What is the touchscreen used for?
The touchscreen displays operating data, supports chemical concentration adjustment and helps manage water, chemical and energy consumption. Cleaning modes are selected using a manual rotary switch.
Q4: What water supply is required?
The machine requires a water flow rate above 3 m³/h, a water pressure of 2–5 bar and a 1″ water supply pipe.
Q5: What are the machine dimensions?
The EFC-325H measures 730 × 615 × 1745 mm and weighs 146 kg. Allow additional space for operation and maintenance.
Q6: Can the machine be used in different food processing industries?
Yes. It is suitable for equipment and production-area cleaning in meat, poultry, dairy, bakery and seafood processing facilities, subject to the specific cleaning requirements and chemical compatibility.
