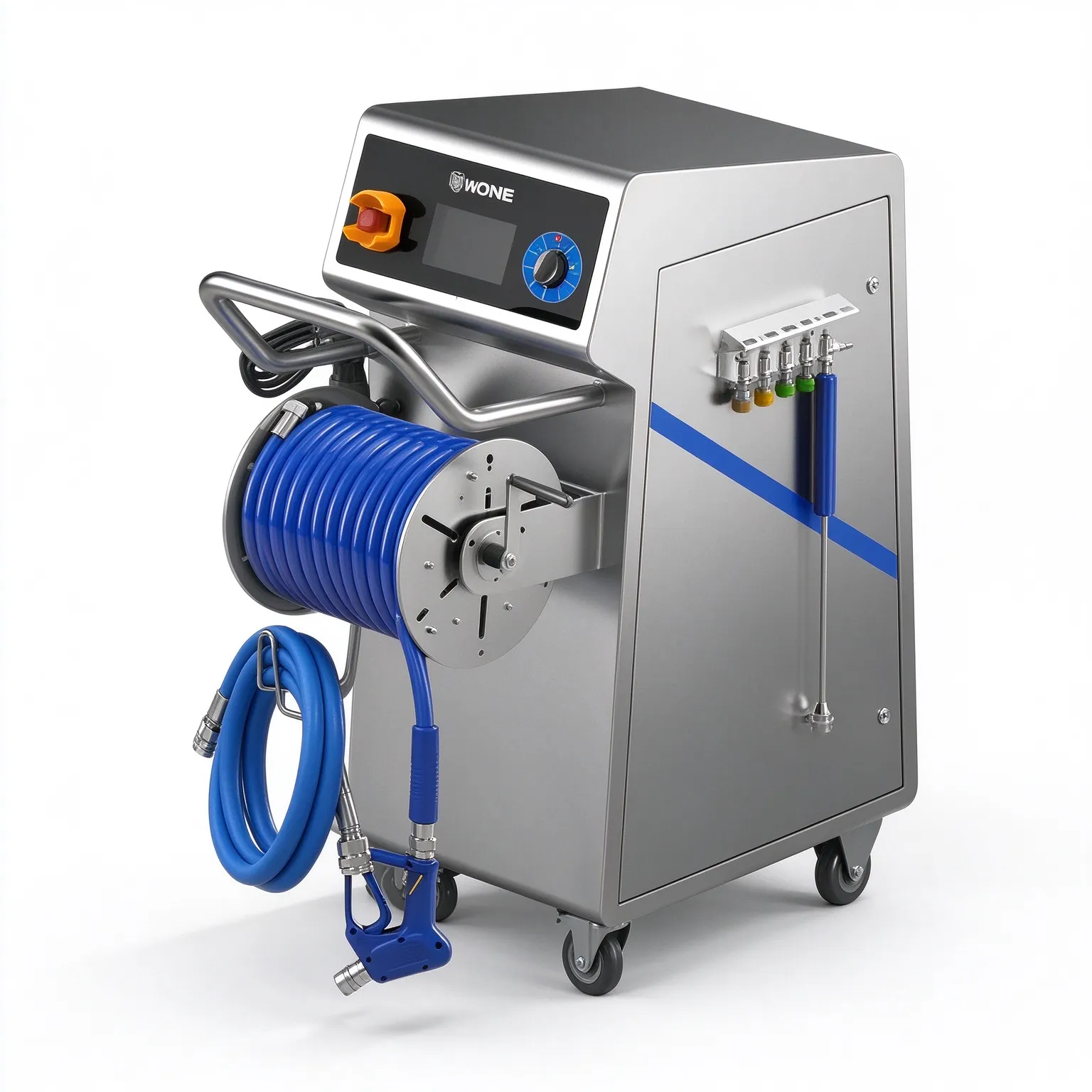

1. Product Overview
The EFC-325W Mobile Foam Cleaning Machine integrates high-pressure rinsing, foam cleaning and disinfection in one unit. With a maximum rinsing pressure of 20 bar, it helps remove dirt, apply cleaning foam and distribute disinfectant across food processing equipment and workshop surfaces.
Its mobile design allows flexible movement between cleaning areas. The i-clean system supports chemical dosage adjustment, consumption monitoring and abnormal alarms, helping improve cleaning efficiency and control chemical use.
2. Key Features
-
4-in-1 Cleaning: Integrates high-pressure rinsing, alkaline foam cleaning, acidic foam cleaning and disinfection in one machine.
-
20 Bar High-Pressure Rinsing: Provides strong water impact to remove dirt and residues from equipment surfaces.
-
Alkaline & Acidic Foam: Supports two types of foam cleaning to meet different cleaning requirements.
-
Adjustable Concentration: Allows adjustment of alkaline foam, acidic foam and disinfectant concentrations.
-
i-clean System: Supports chemical dosage adjustment, water, chemical and energy consumption monitoring, and abnormal alarms.
-

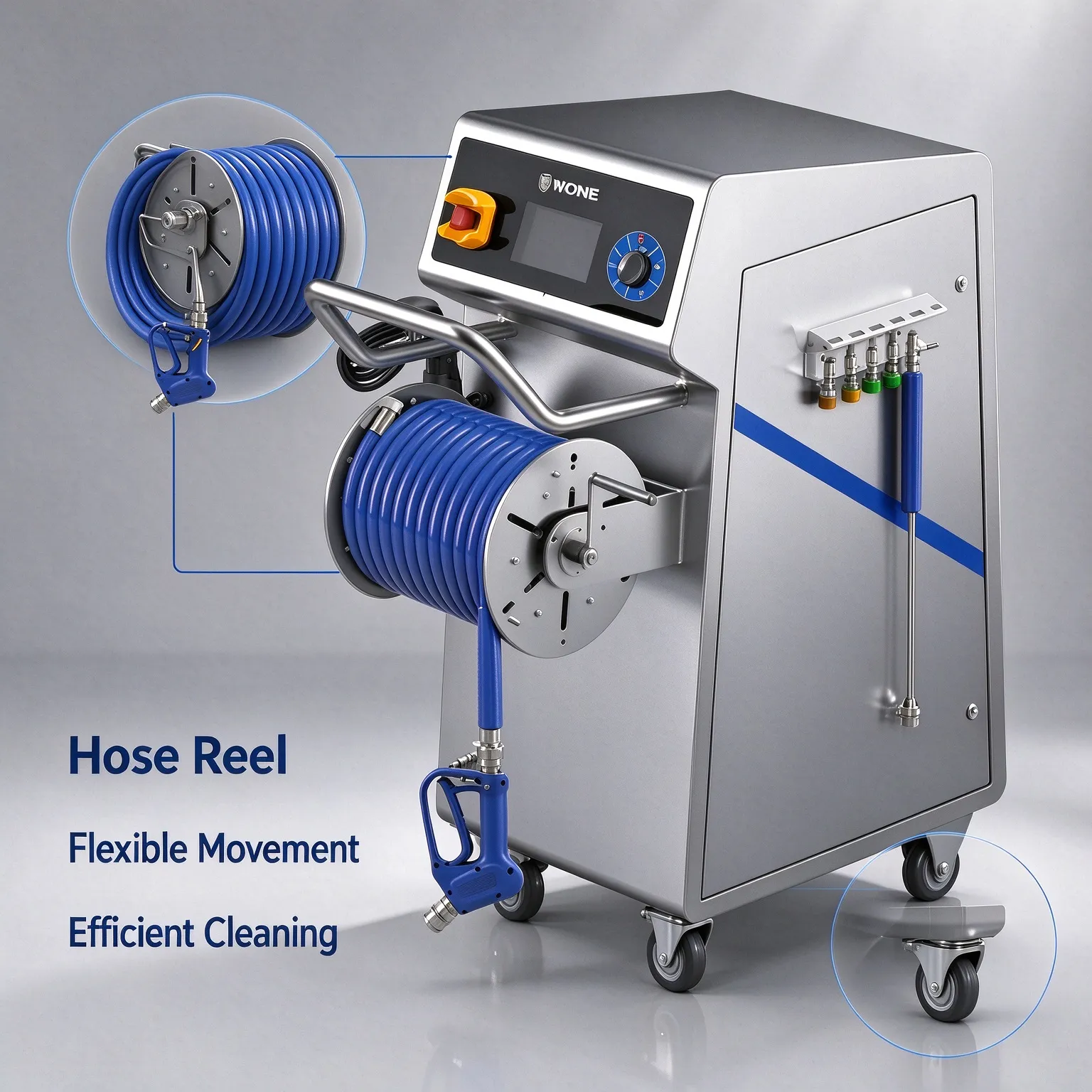

Mobile Design: Equipped with wheels for flexible movement between cleaning areas.
-
Multiple Spray Nozzles: Includes 0° and 15° rinsing nozzles for different cleaning requirements.
-
Safety Protection: Includes overload, short-circuit and leakage protection.
3. Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Mobile Foam Cleaning Machine |
| Model | EFC-325W |
| Voltage | 220V / 50Hz |
| Power | 3000W |
| Water Inlet | 3/4″ quick plug + 2 m hose |
| Water Supply Flow Rate | Greater than 3 m³/h |
| Water Supply Pipe Diameter | 3/4″ |
| Water Supply Pressure | 2–5 bar |
| Maximum Outlet Pressure | 20 bar |
| Hose Length | 15 m |
| Weight | 126 kg |
| Protection Rating | IP54 |
| Cleaning Functions | Rinsing, Foam Cleaning, Disinfection |
| Safety Protection | Overload, short circuit and leakage protection |
| Operating Temperature | Above 2°C |
| Dimensions | L1200 × W550 × H1150 mm |
4. How It Works
The EFC-325W combines four cleaning functions in one machine: high-pressure rinsing, alkaline foam cleaning, acidic foam cleaning and disinfection.
Step 1: High-Pressure Rinsing
Use the spray gun to rinse equipment and surfaces. The 0° nozzle delivers concentrated water impact for stubborn dirt, while the 15° nozzle provides wider coverage for faster cleaning.
Step 2: Alkaline Foam Cleaning
Apply alkaline foam to help remove grease, fats and other organic residues from equipment and surfaces.
Step 3: Acidic Foam Cleaning
Apply acidic foam to help remove mineral deposits and other inorganic residues, depending on the cleaning requirements.
Step 4: Disinfection
Apply disinfectant to cleaned surfaces to support the factory’s hygiene procedures. The disinfectant concentration can be adjusted according to the required cleaning protocol.
The operator can select the appropriate function based on the type of contamination and the factory’s cleaning procedures.
5. Applications
The EFC-325W is designed for cleaning equipment and production areas in the food processing industry. Its four cleaning functions help address different types of dirt and hygiene requirements.
Suitable for:
- Meat & Poultry Processing: Cleaning processing equipment, worktables and production surfaces.
- Seafood Processing: Removing organic residues and maintaining clean processing areas.
- Dairy Processing: Cleaning equipment and washable surfaces exposed to milk and dairy residues.
- Bakeries: Removing dough residues, grease and other production-related dirt.
- Central Kitchens: Cleaning food preparation equipment and work areas.
- Other Food Factories: Supporting routine rinsing, alkaline foam cleaning, acidic foam cleaning and disinfection procedures.
With its mobile design, the EFC-325W can be moved between different cleaning areas to support daily sanitation routines.
6. Installation Requirements
The EFC-325W features a mobile design and does not require a fixed installation position.
Before use, prepare the following connections:
- Water Supply: 3/4″ water supply connection, with a flow rate above 3 m³/h and pressure of 2–5 bar.
- Electrical Supply: 220V / 50Hz power supply.
- Water Inlet: 3/4″ quick plug with a 2 m inlet hose.
- Working Area: Provide sufficient space for moving the machine and operating the 15 m hose.
- Operating Environment: Ambient temperature above 2°C.
Confirm the site’s water supply capacity and electrical requirements before installation.
7. Product Comparison
| Feature | EFC-325W Mobile Foam Cleaning Machine | Manual Cleaning |
|---|---|---|
| Cleaning Method | High-pressure rinsing, alkaline foam, acidic foam and disinfection | Manual spraying, brushing and rinsing |
| Cleaning Functions | Four functions integrated into one machine | Usually requires separate manual steps |
| Cleaning Efficiency | Helps streamline routine cleaning procedures | Depends on the number of workers and manual operation |
| Cleaning Coverage | Spray gun supports targeted and wide-area rinsing | Depends on the operator’s technique |
| Chemical Concentration | Adjustable foam and disinfectant concentrations | Depends on manual preparation and control |
| Labor Requirements | Reduces repetitive spraying and application tasks | Requires more direct manual involvement |
| Process Control | i-clean system supports dosage adjustment, consumption monitoring and abnormal alarms | Often relies on manual checks and records |
| Mobility | Mobile design for use in different cleaning areas | Cleaning tools must be carried or moved manually |
Why Choose the EFC-325W?
Compared with traditional manual cleaning, the EFC-325W integrates rinsing, alkaline foam cleaning, acidic foam cleaning and disinfection into one mobile unit. It helps simplify cleaning procedures, reduce repetitive manual work and improve control over chemical dosage and consumption.
Actual cleaning efficiency and labor savings depend on the factory layout, equipment condition and cleaning procedures.
8. FAQ
Q1: What cleaning functions does the EFC-325W provide?
The EFC-325W integrates four functions: high-pressure rinsing, alkaline foam cleaning, acidic foam cleaning and disinfection.
Q2: What is the maximum rinsing pressure?
The maximum outlet pressure is 20 bar, helping remove dirt and residues from equipment surfaces.
Q3: Can I adjust the foam and disinfectant concentrations?
Yes. The alkaline foam, acidic foam and disinfectant concentrations can be adjusted according to your cleaning requirements.
Q4: What is the i-clean system used for?
The i-clean system supports chemical dosage adjustment, water, chemical and energy consumption monitoring, and abnormal alarms.
Q5: Is the EFC-325W suitable for mobile cleaning?
Yes. Its mobile design allows operators to move the machine between different cleaning areas. Water and electrical connections must be available at the intended operating locations.
Q6: Can the EFC-325W replace manual cleaning?
It can help reduce repetitive manual spraying and foam application by integrating four cleaning functions into one machine. Operators may still need to handle the spray gun and perform additional cleaning tasks depending on the equipment and cleaning procedure.
